Description
| Product Features | |
|
Lifting capacity |
3500kg |
|
Overall Height |
2824mm |
|
Overall Width |
2770mm |
|
Width (Inside of columns) |
3380mm |
|
Height (From limit to ground) |
1850mm |
|
Min. height from the pad to the ground |
100mm |
|
Power |
2.2kw |
Product Description
Specifications
1.Dual hydraulic cylinders drive, stable lifting and lowering. Adopt two steel cables for equalization, force two carriages to
move synchronously.
2.Manual lock release mechanism on both sides
2. Ensure more security in operation by traveling limitation.
3. Aluminum motor prevents overheating caused by long time working.
4. Door opening protection rubber bar effectiovely avoid damages.
5. Optional 3-section arm design is suitable for different length adjustment.
6. Lowering limited switch reminding function effectively prevents injuries and damages.
7. Lowering alarm system ensures safety.
8. Its elegant appearance design of column cover and hose inside installation.
9. Positive results of dynamic test with 115% of rated capacity and static test with 150% of rated capacity.

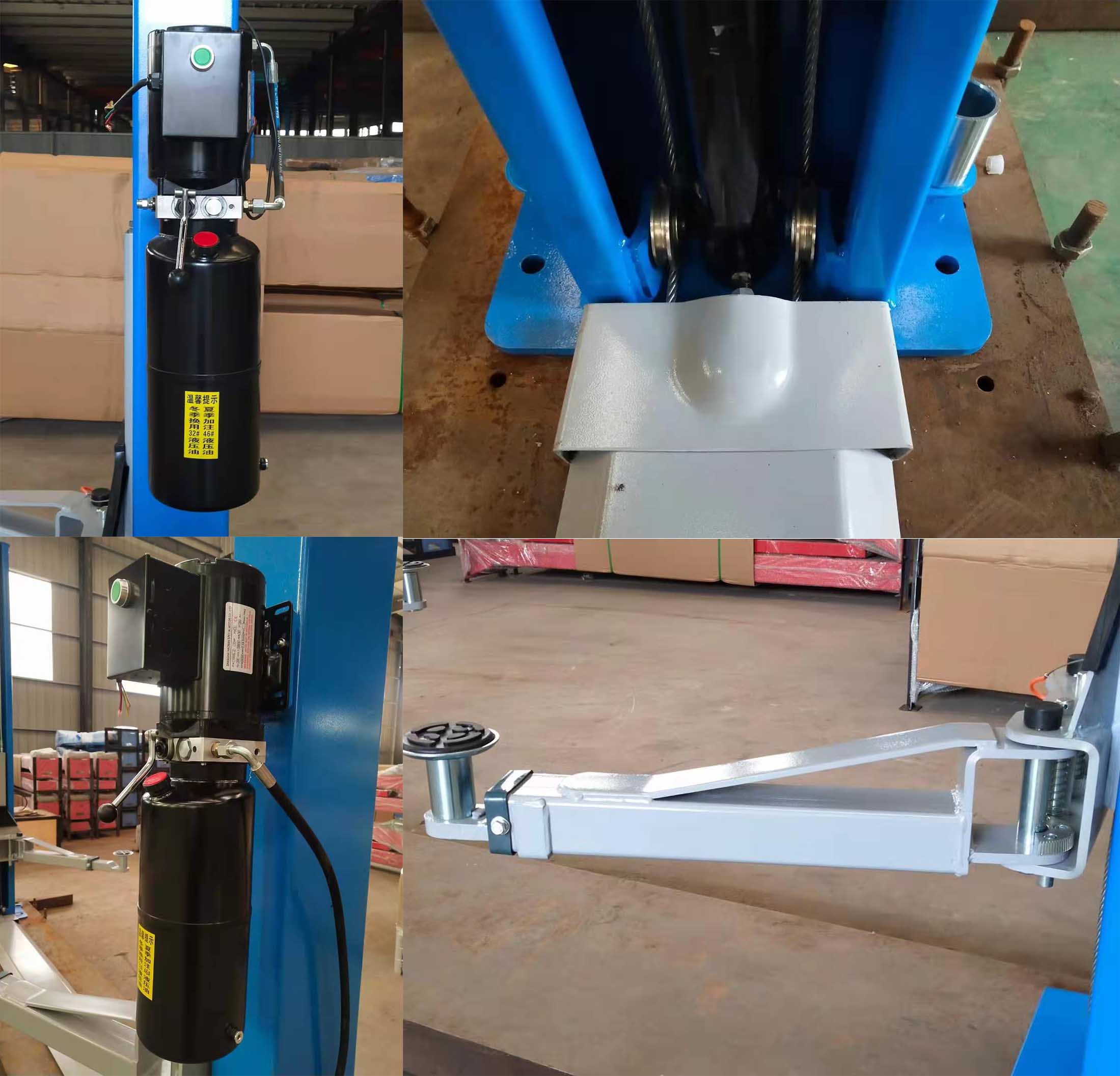

Details

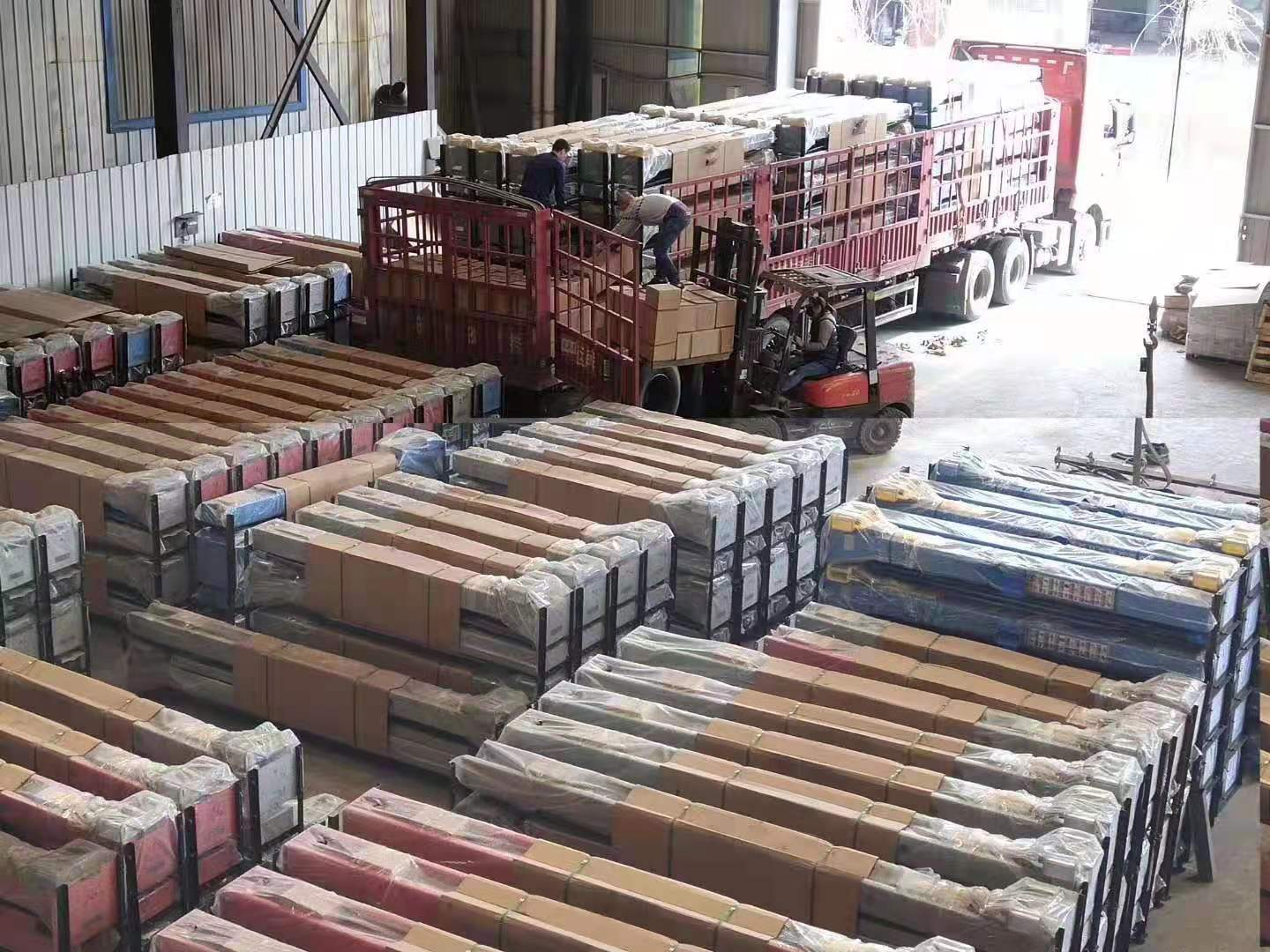

Package
