Description
|
Product Features |
|
| Length | 5600mm |
| Width | 2100mm |
| Height | 300mm |
| Air Supply | 0.8Mpa |
| Total Weight | 3200kg |
| Pulling Capacity | 10T |
Specifications

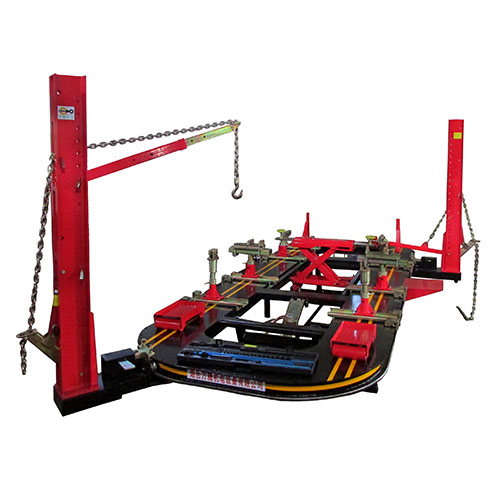

High-precision Manganese steel working bench, provides you a multi-use working bench.
The working bench goes up and down vertically, the height is adjustable arbitrarily according to the need for repairing among 300-660mm.It is more convenient for the vehicle to put on the bench.
Quadrate pulling tower can work along working bench with 360 degree, no dead place, once stretched trip can reach 460mm,easy to operate, thus greatly reducing the labor intensity.
Movable secondary-lifting ensures the getting on the bus and repairing more convenient and more swift.

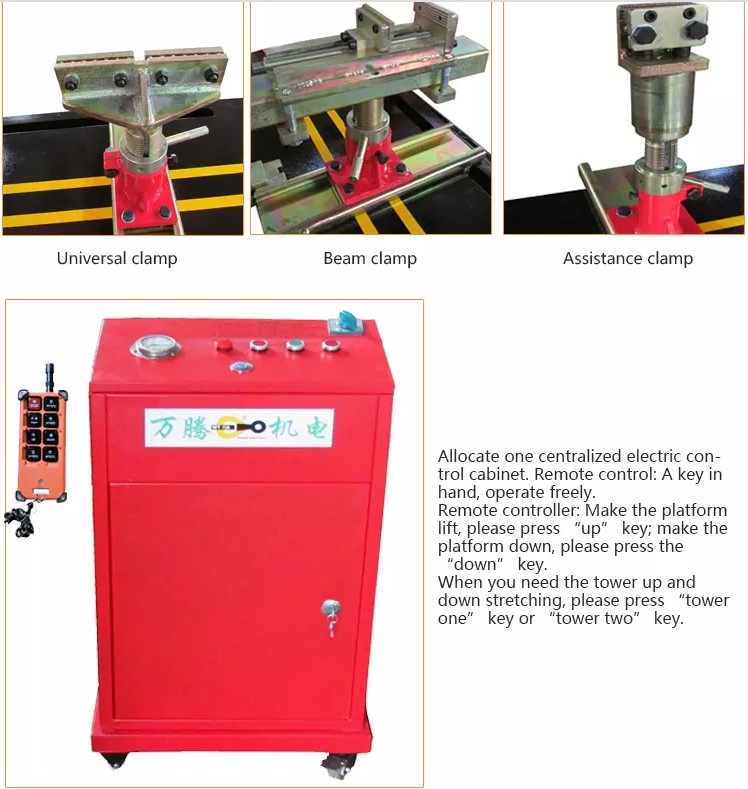

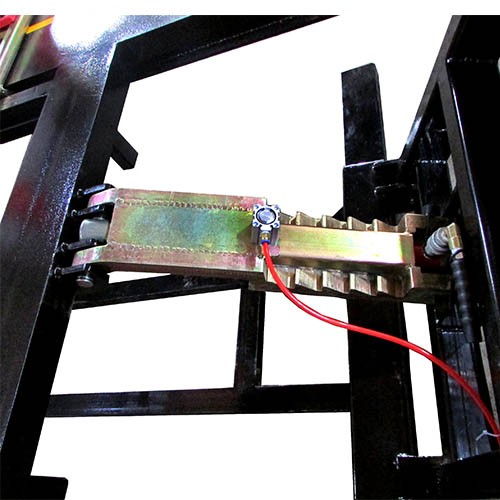

By air operated machinery self-lock device,can realize remote-controlled operation.
External oil cylinder facilitates the maintenance service.
Hydraulic systems, powerful, reliable performance, long use life.

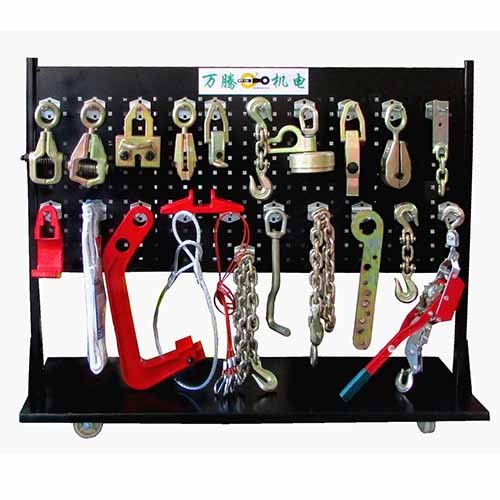

Fully equipped sheet metal pulling tools, taking into account the deformation of arbitrary shape correction, easy to use.
The device is applicable to a variety of cars, vans, sport utility vehicle.
